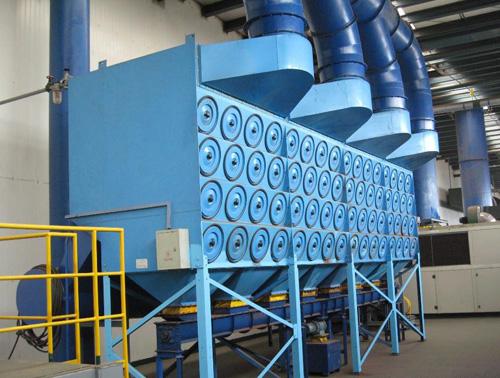

The structure of cartridge dust collector is composed of air inlet pipe, air outlet pipe, box, ash hopper, ash cleaning device, deflector device, air flow distribution board, filter cartridge and electric control device, similar to the structure of air box pulse bag dust collector. The arrangement of the filter cartridge in the dust collector is very important, it can be arranged vertically on the flower plate of the box body or tilted on the flower plate, from the point of view of the effect of ash removal, the vertical arrangement is more reasonable, the lower part of the flower plate is the filter chamber, the upper part is the air box pulse chamber, and the air flow distribution board is installed at the entrance of the dust collector.

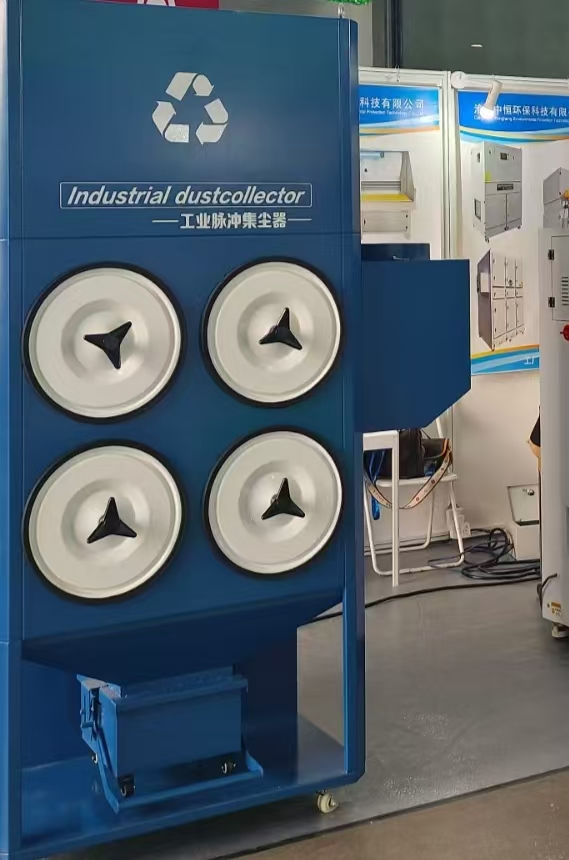

The cartridge dust collector boasts excellent performance and significant advantages in the field of industrial dust removal. Its high-efficiency cartridge materials effectively capture fine dust particles, ensuring excellent filtration efficiency. The pulse-jet automatic cleaning system regularly removes accumulated dust during continuous operation, minimising downtime for maintenance. The compact modular design saves space while supporting vertical or inclined cartridge arrangement, adapting to different site requirements.The internal airflow distribution plate optimises the airflow organisation, resulting in more uniform and efficient dust collection.The durable components and self-cleaning technology significantly reduce maintenance frequency and operating costs. The product's versatility allows for its use in diverse industrial scenarios, including heavy-duty casting and precision electronics, with the common goal of enhancing workshop air quality. This not only safeguards the well-being of workers but also ensures that the company's environmental protection emissions remain within strict standards, thereby achieving a win-win scenario that combines economic and environmental benefits.
